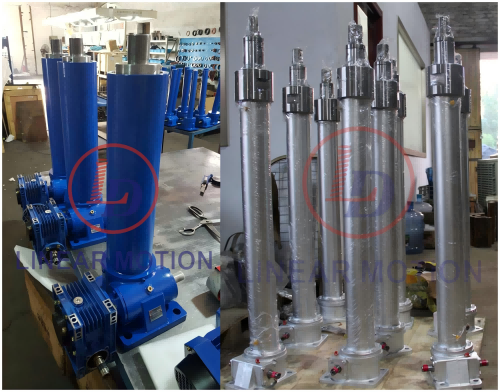

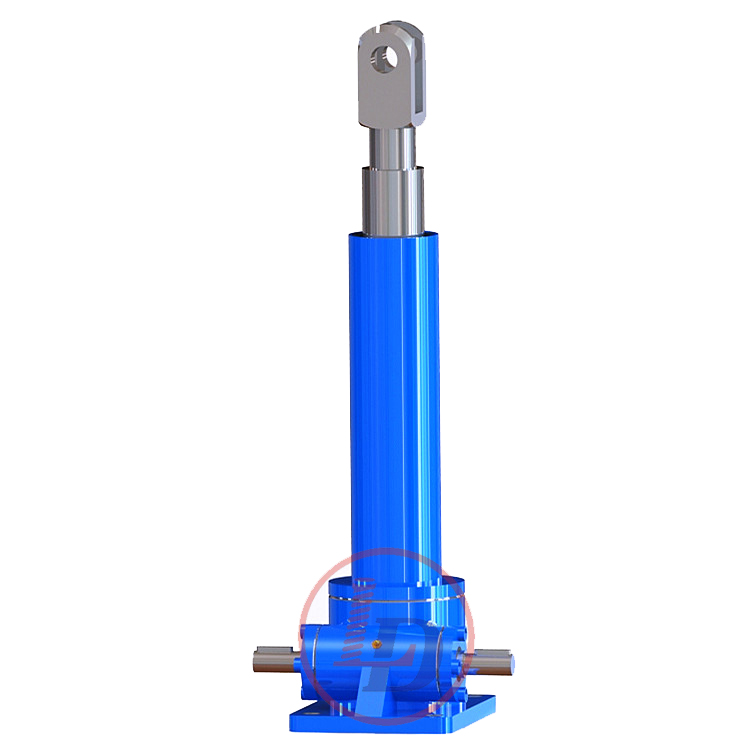

Acme Heavy Duty Electric Linear Actuator

A compact screw jack actuator that uses spiral bevel gear pairs as transmission components for faster speed and higher efficiency.

The electric linear actuation is to create motion in a straight line, in contrast to the circular motion actuator of the traditional electric motor.

An electric linear actuation is a mechanical device that converts energy in a straight line to create movement.

Heavy duty electric linear actuator is a kind of electric actuator that can withstand a large load

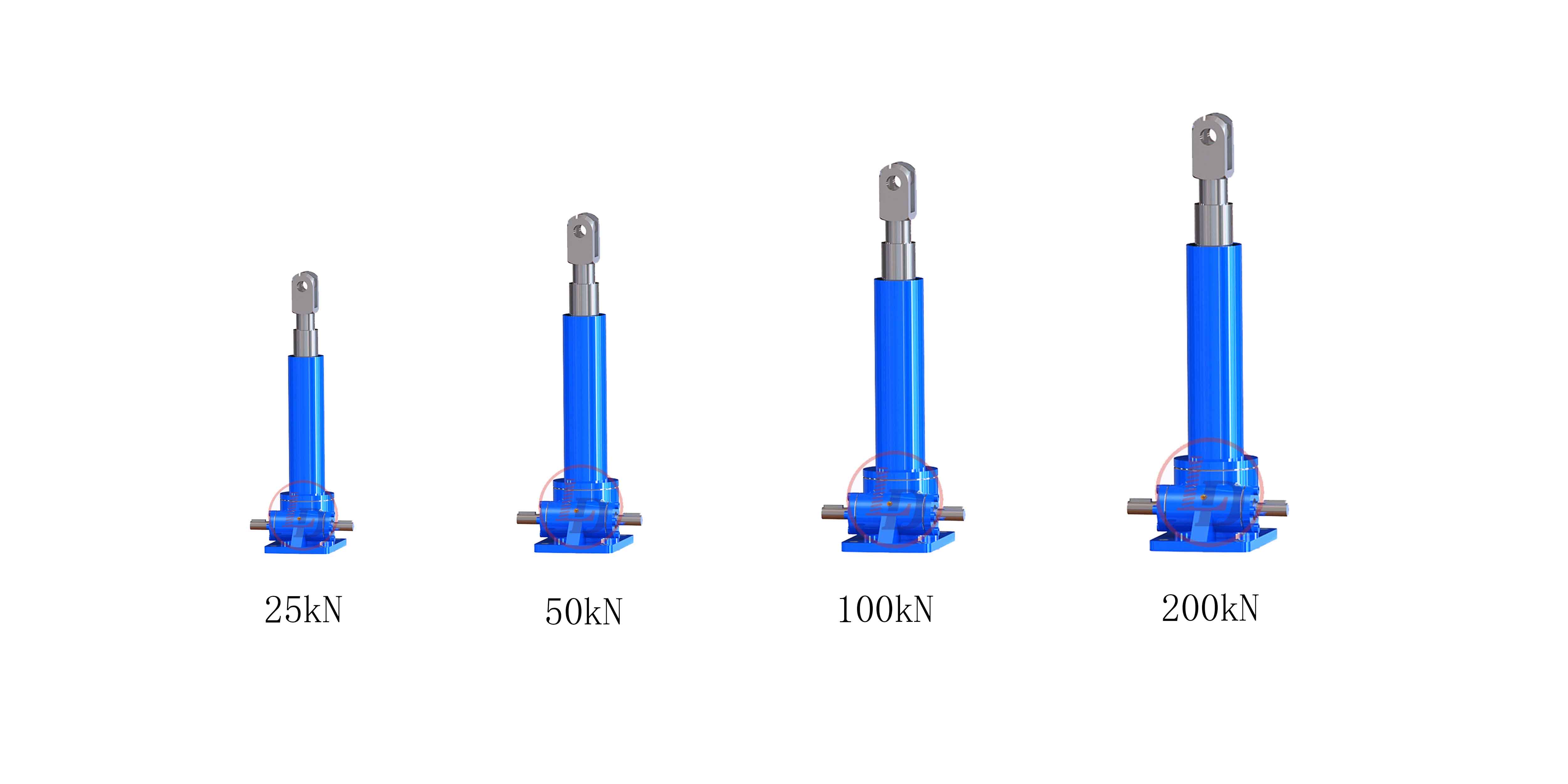

A linear actuator is a mechanical device that converts energy (power from air, electricity or liquid) to create motion in a straight line; contrasted with circular motion of a conventional electric motor. It can also be used to apply a force. Types of motion include: blocking, clamping, ejecting, lifting, descending, pushing or pulling. Features Trapezoidal thread The motor is connected to the threaded spindle via a worm gear. Depending on the model, fixing via the joint head and rotary bearing console or rod end bearing and eye gear flange Solenoid switch and rotary encoder available Trap nut safety system for trapezoidal screw threads available ACME Screw Linear Actuator Main Datas Load capacity:max 2.5ton     Max.lifting speed:93mm/s  Motor power:380/220VAC

An integrated compact combination of ordinary tooth screw/ball screw/planetary ball screw, reducer and motor.

Our trapezoidal screw jacks(also named acme screw jack) JWM series is suitable for low speed and low frequency.

JWB type (ordinary ball screw type) is suitable for high-speed, high-frequency and high-performance devices. The main components are precision ball screw pair and high-precision worm gear pair.
